LCD Display Waterproof socket
Airflow velocity, UV timer, UV work time, 2 waterproof sockets are located in the side
system work time, real time panel, for optimum convenience of using
small devices inside the cabinet
UV lamp Gas Tap
Emission of 253.7 nanometers for most
efficient decontamination
Side glass window
The transparent side glass windows maximize light and visibility inside the cabinet,
providing a bright and open working environment.

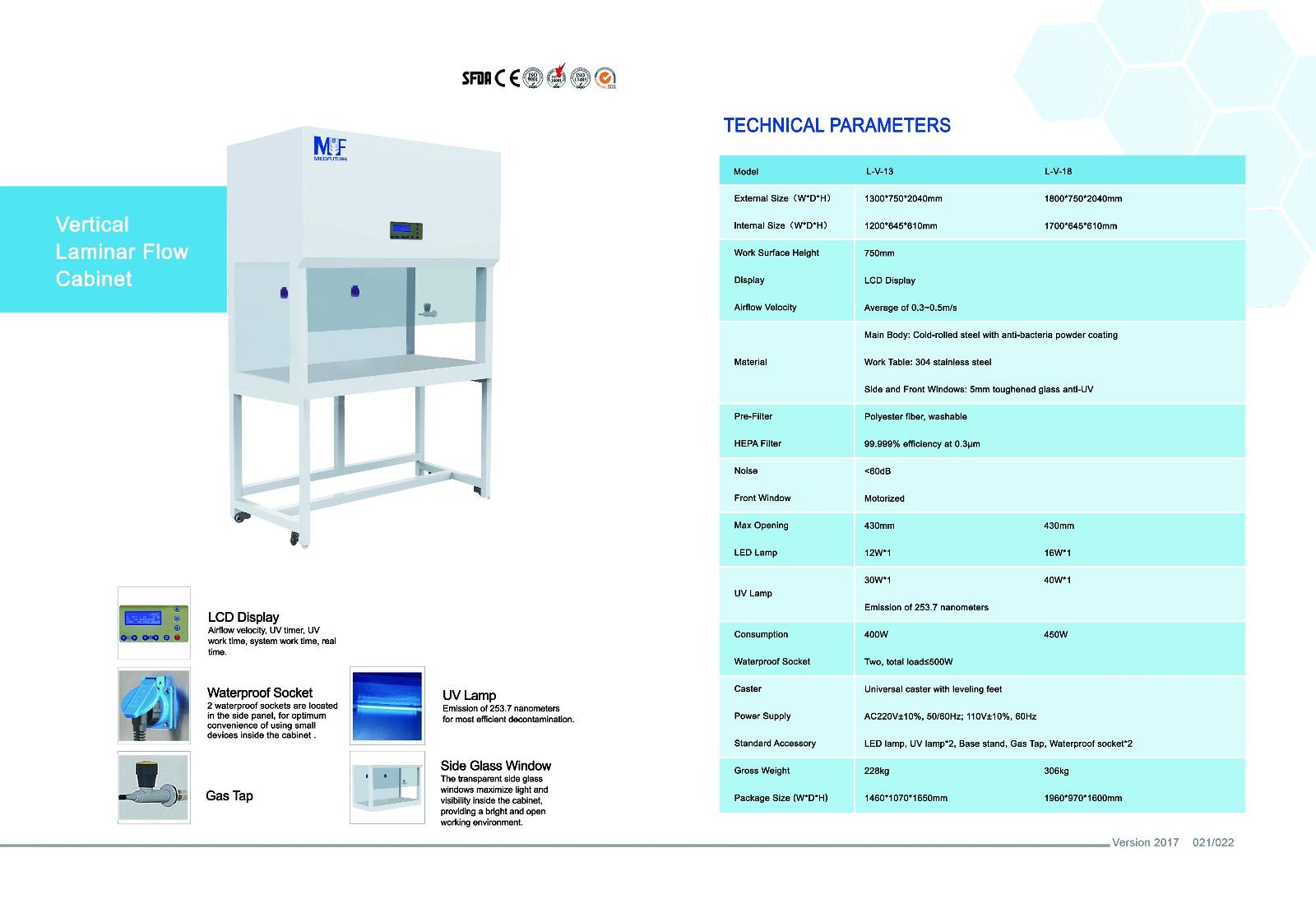

TECHNICAL PARAMETERS
Model |
L-V-13 |
L-V-18 |
External Size(W*D*H) |
1300*750*2040mm |
1800*750*2040mm |
Internal Size(W*D*H) |
1200*645*610mm |
1700*645*610mm |
Work Surface Height |
750mm |
|
Display |
LCD Display |
|
Airflow Velocity |
Average of 0.3~0.5m/s |
|
Material |
Main Body: Cold-rolled steel with anti-bacteria powder coating |
|
Work Table: 304 stainless steel |
||
Side and Front Windows: 5mm toughened glass anti-UV |
||
Pre-filter |
Polyester fiber, washable |
|
HEPA Filter |
99.999% efficiency at 0.3um |
|
Noise |
<60dB |
|
Front Window |
Motorized |
|
Max Opening |
430mm |
|
LED Lamp |
12W*1 |
16W*1 |
UV Lamp |
30W*1 |
40W*1 |
Emission of 253.7 nanometers |
||
Consumption |
400W |
450W |
Waterproof socket |
Two, total load≤500W |
|
Caster |
Universal caster with leveling feet |
|
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
|
Standard Accessory |
LED lamp, UV lamp*2, Base stand, Gas Tap, Waterproof socket*2 |
|
Gross Weight |
228kg |
306kg |
Package Size(W*D*H) |
1460*1070*1650mm |
1960*970*1600mm |
