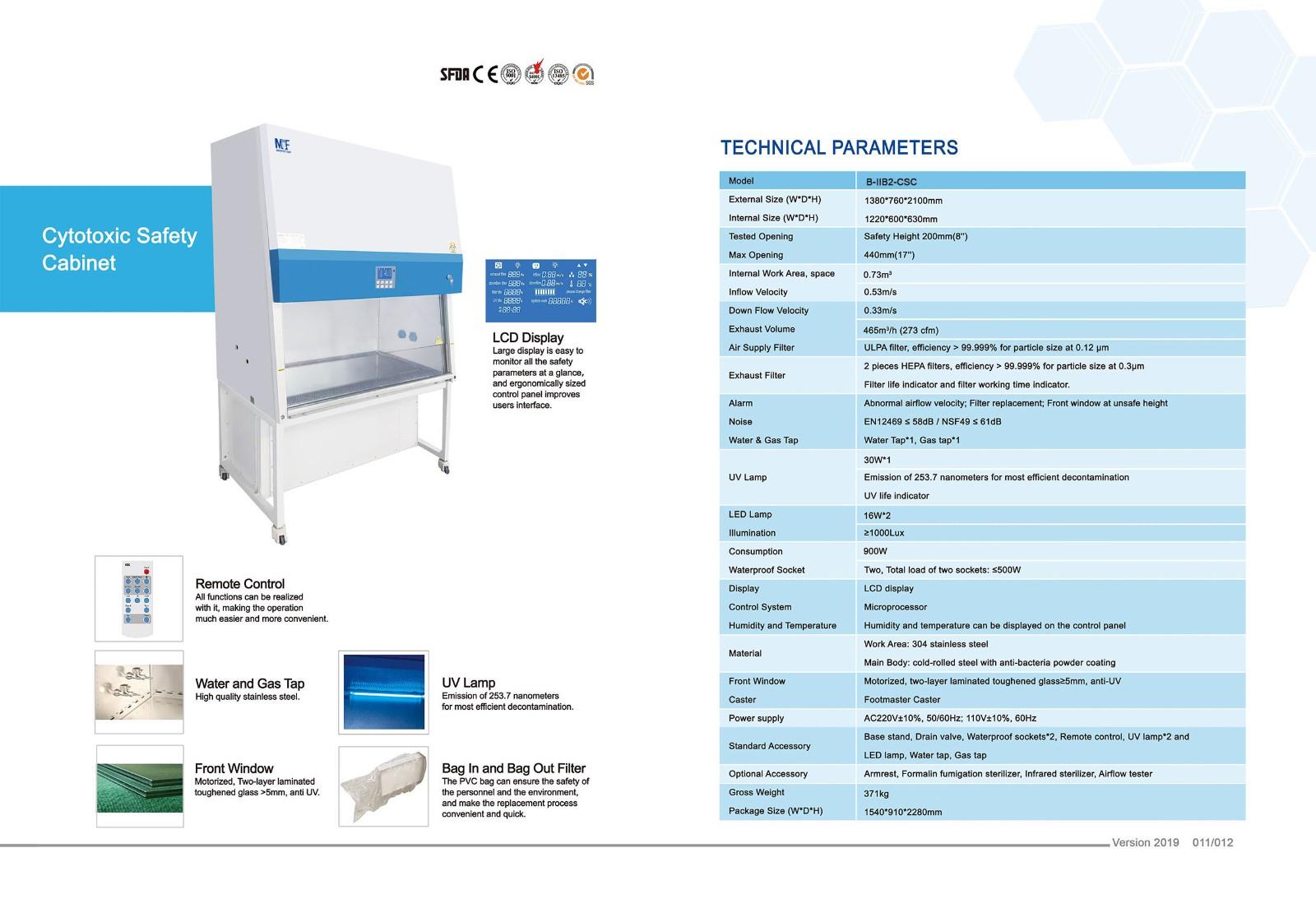

Remote Control LCD Display
All functions can be realized with it,making the Large digital display is easy to monitor all the safety
operation much easeir and more convenient. parameters at a glance and ergonomically sized
control panel improves user interface.
Water and Gas Taps UV Lamp
High quality stainless steel. Emission of 253.7 nanometers for most
efficient decontamination.
Front Window Bag In and Bag Out Filter
Motorized ,Two-layer laminated toughened The PVC bag can ensure the safety of the
glass>5mm,anti UV. personnel and the environment, and make
the replacement process convenient and quick.
Model |
B-IIB2-CSC11 |
B-IIB2-CSC13 |
External size(W*D*H) |
1087*760*2100mm |
1380*760*2100mm |
Internal size(W*D*H) |
910*600*630mm |
1220*600*630mm |
Tested Opening |
Safety Height 200 mm(8’’) |
|
Max Opening |
440mm(17’’) |
|
Internal Work Area,space |
0.55m3 |
0.73m3 |
Inflow Velocity |
0.53 m/s |
|
Down Flow Velocity |
0.33 m/s |
|
Exhaust Volume |
347m3/h (204cfm) |
465m3/h (273cfm) |
Air Supply Filter |
ULPA filter,efficiency>99.9995% for particle size at 0.12 μm |
|
Exhuast Filter |
2pieces ULPA filters, efficiency>99.9995% for particle size at 0.12 μm. Fiter life indicator and filter working time indicator. |
|
Alarm |
Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
|
Noise |
EN12469≤58dB/NSF49≤ 61 dB |
|
Water &Gas Tap |
Water Tap*1,Gas tap*1 |
|
UV lamp |
18 W*1 |
30 W*1 |
|
Emission of 253.7nanometers for most efficient decontamination |
|
|
UV life indicator |
|
LEDLamp |
12 W*2 |
16 W*2 |
Illumination |
≥1000 lux |
|
Consumption |
700 W |
900 W |
Waterproof Socket |
Two ; Total load of two sockets :≤500W |
|
Display |
LCD Display |
|
Control System |
Microprocessor |
|
Humidity and Temperature |
Humidity and temperature can be displayed on the control panel |
|
Material |
Work Area:304 stainless steel Main Body :Cold-rolled steel with anti-bacteria powder coating |
|
Front Window |
Moterized,two-layer laminated 5mm toughened glass≥5mm,anti UV. |
|
Caster |
Footmaster Caster |
|
Power supply |
AC220V± 10%,50/60HZ;110V±10%,60HZ |
|
Standard Configuration |
Base stand, Drain valve, waterproof sockets*2, Remote control, UV lamp*2 and LED Lamp,Water tap ,Gas tap |
|
Optional Accessory |
Armrest,Formalin fumigation sterilizer,infrared sterilizer, Airflow tester,PVC duct |
|
Gross weight |
320kg |
371kg |
Package Size(W*D*H) |
1080*910*2280mm |
1540*910*2280mm |
