ADVANTAGE
1.Air speed adjustable.
2. Tabletop type,easy to carry and save space.
3. Microprocessor control system,LED Display.
4.HEPA Filter with efficiency:99.999% at 0.3 μm.
Air Flow Pattern:

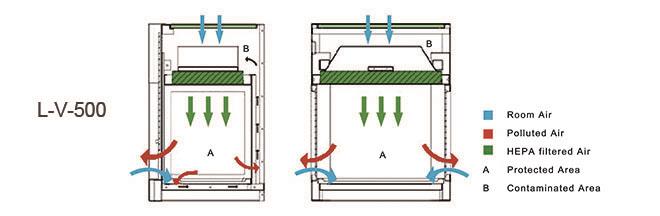

Vertical laminar flow cabinet L-V-500: Positive pressure in work area only protects sample.

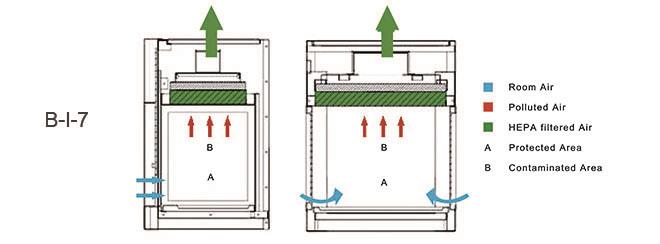

Class I biological safety cabinet B-I-7: negative pressure in work area protects operator and environment.
TECHNICAL PARAMETERS
Model |
L-V-500 |
B-I-7 |
External Size(W*D*H) |
550*460*700 mm |
|
Internal Size(W*D*H) |
480*340*370 mm |
|
Display |
LED Display |
|
Airflow Velocity |
0.3~0.5m/s |
≥0.5m/s |
Material |
Main Body: Cold-rolled steel with anti-bacteria powder coating |
|
Work Table: 304 stainless steel |
||
Pre-filter |
Polyester fiber, washable |
|
HEPA Filter |
99.999% efficiency at 0.3μm |
|
Noise |
<60dB |
|
Front Window |
Manual, 5mm toughened glass, anti UV |
|
Max Opening |
310mm |
|
LED Lamp |
4W*1 |
|
UV Lamp |
8W*1 |
8W*1 |
Emission of 253.7 nanometers |
||
Consumption |
100W |
|
Power Supply |
AC220±10%, 50/60Hz; 110V±10%, 60Hz |
|
Standard Accessory |
LED lamp*1, UV lamp*2 |
|
Gross Weight |
57kg |
90kg |
Package Size (W*D*H) |
700*610*830mm |
700*610*830mm |
