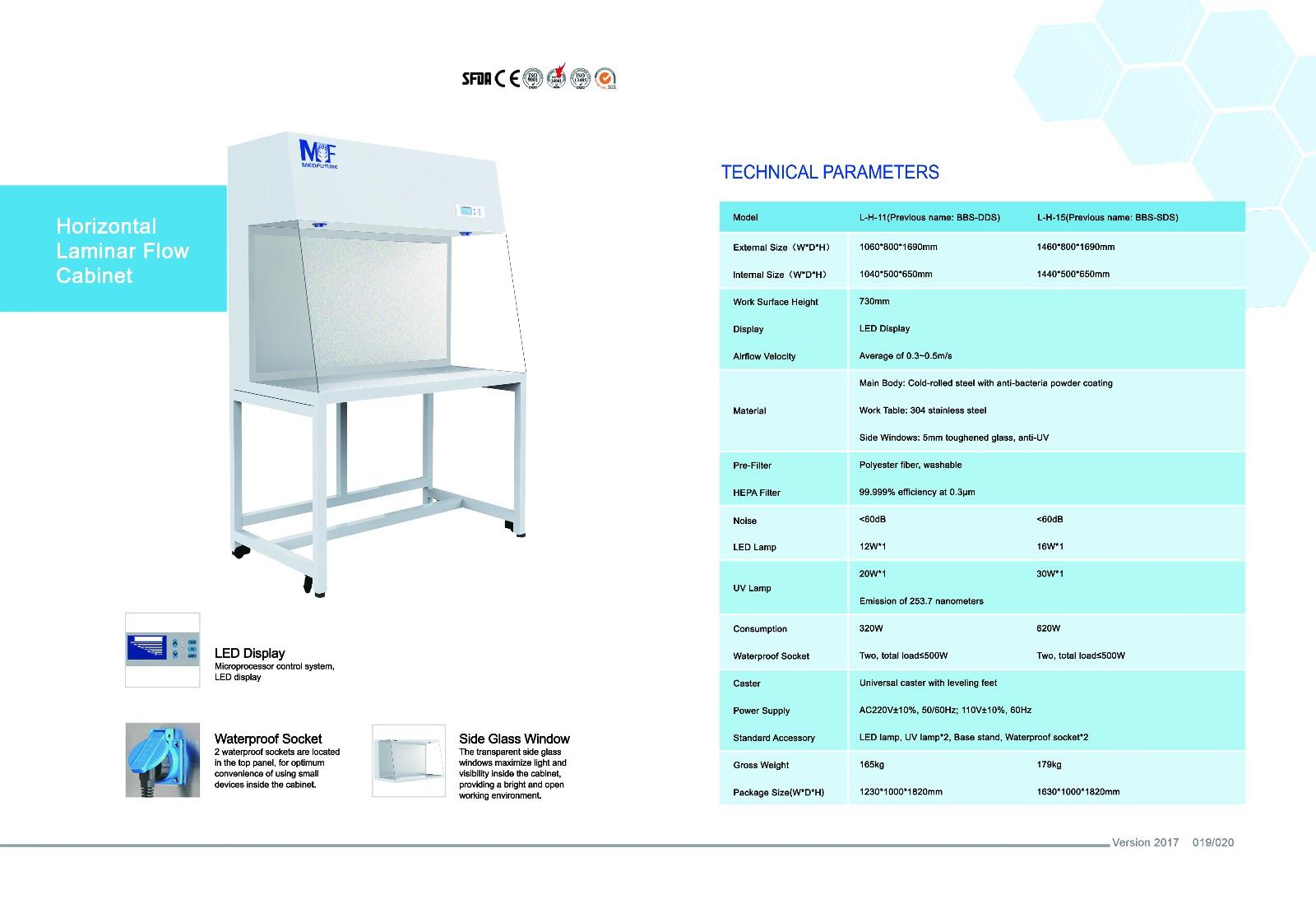

L-H-11/15 Horizontal Laminar Flow Cabinet_Horizontal Laminar Flow Cabinet

LED Display:Microprocessor control system, LED display

Waterproof socket :

2 waterproof sockets are located in the side panel,

for optimum convenience of using small devices inside the cabinet

Side glass window:

The transparent side glass windows maximize light and

visibility inside the cabinet, providing a bright and open working environment.

TECHINICAL PARAMETERS

Model	L-H-11	L-H-15
External Size（WDH）	11008081690mm	15008081690mm
Internal Size（WDH）	1000500600mm	1400500600mm
Work Surface Height	750mm
Display	LCD Display
Airflow Velocity	Average of 0.3~0.45m/s
Material	Main Body: Cold-rolled steel with anti-bacteria powder coating
	Work Table: 304 stainless steel
	Side and front Window: 8mm toughened glass, anti-UV
Pre-filter	Polyester fiber, washable
HEPA Filter	99.999% efficiency at 0.3um
Noise Front Window	<65dB Motorized
LED Lamp	12W*1	16W*1
UV Lamp	20W*1	30W*1
	Emission of 253.7 nanometers
Consumption	200W	300W
Waterproof socket	Two, total load≤500W
Caster	Universal caster with leveling feet
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory	LED lamp, UV lamp2,Base stand，Waterproof socket2，hook 10
Gross Weight	170kg	185kg
Package Size（WDH）	125010301340mm	165010301340mm
