LCD Display
Airflow velocity, UV timer, UV work time, system work time, real time
Waterproof Socket :
2 waterproof sockets are located in the side panel, for optimum
convenience of using small devices inside the cabinet
UV lamp :
Emission of 253.7 nanometers for most efficient decontamination
Gas Tap :
Side Glass Window:
The transparent side glass windows maximize light and
visibility inside the cabinet, providing a bright and open working environment.

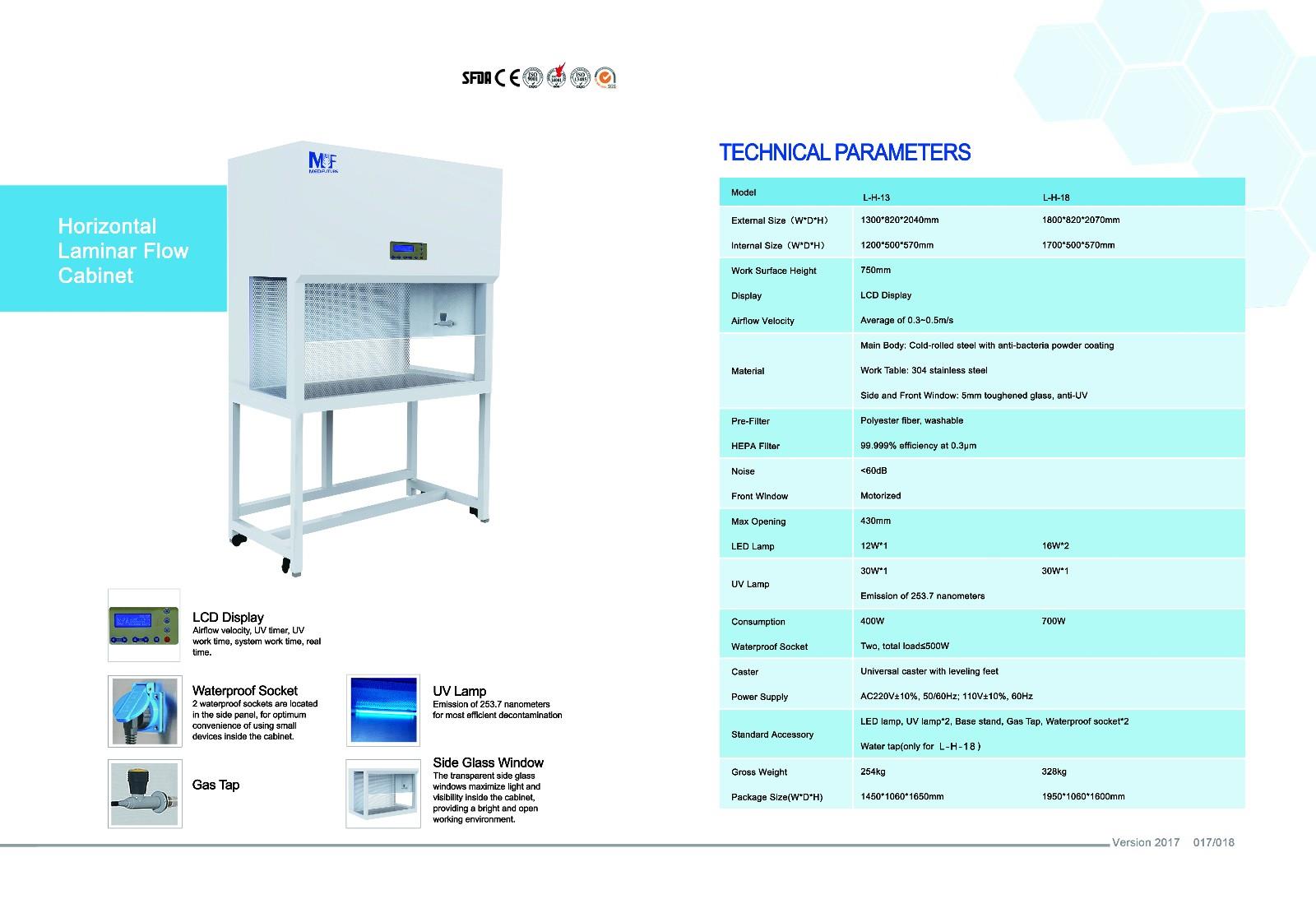

TECHINICAL PARAMETERS
Model |
L-H-13
|
L-H-18 |
External Size(W*D*H) |
1300*820*2040mm |
1800*820*2070mm |
Internal Size(W*D*H) |
1200*500*570mm |
1700*500*570mm |
Work Surface Height |
750mm |
|
Display |
LCD Display |
|
Airflow Velocity |
Average of 0.3~0.5m/s |
|
Material |
Main Body: Cold-rolled steel with anti-bacteria powder coating |
|
Work Table: 304 stainless steel |
||
Side and Front Window: 5mm toughened glass, anti-UV |
||
Pre-filter |
Polyester fiber, washable |
|
HEPA Filter |
99.999% efficiency at 0.3um |
|
Noise |
<60dB |
|
Front Window |
Motorized |
|
Max Opening |
430mm |
|
LED Lamp |
12W*1 |
16W*2 |
UV Lamp |
30W*1 |
30W*1 |
Emission of 253.7 nanometers |
||
Consumption |
400W |
700W |
Caster |
Universal caster with leveling feet |
|
Waterproof socket |
Two, total load≤500W |
|
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
|
Standard Accessory |
LED lamp, UV lamp*2, Base stand, Gas Tap, Waterproof socket*2, Water Tap (only for L-H-18) |
|
Gross Weight |
254kg |
328kg |
Package Size(W*D*H) |
1450*1060*1650mm |
1950*1060*1600mm |
