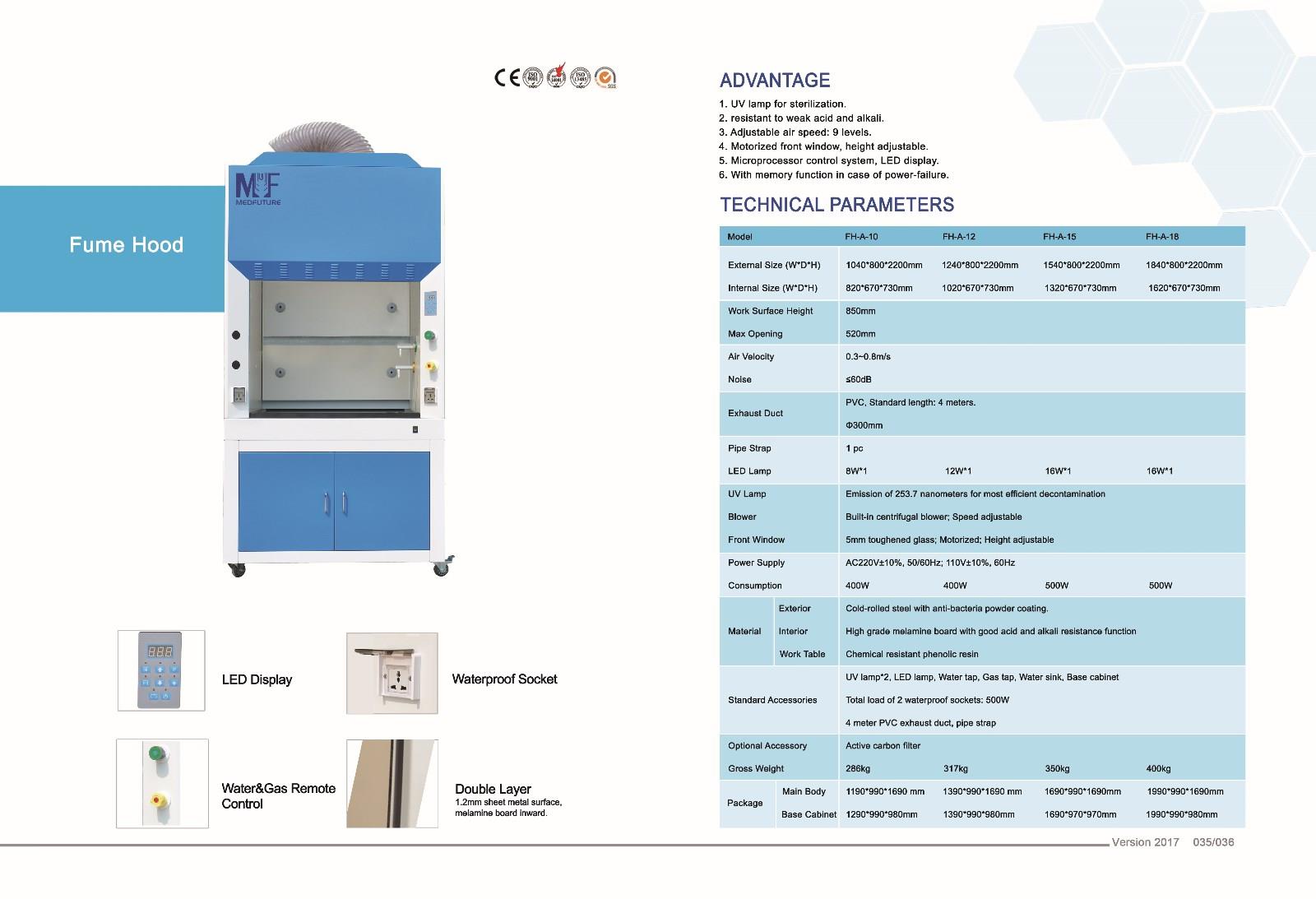

LED Display
Water & Gas Tap Remote Control
Waterproof Socket
Double Layer
1.2mm sheet metal surface, melamine board inward.
ADVANTAGE:
1. UV lamp for sterilization.
2. Resistant to weak acid and alkali.
3. Adjustable air speed :9 levels.
4. Motorized front window, height adjustable.
5. Microprocessor control system, LED display.
6. With memory function in case of power-failure.
Model |
FH-A-10 |
FH-A-12 |
FH-A-15 |
FH-A-18 |
|
External Size (W*D*H) |
1040*800*2200mm |
1240*800*2200mm |
1540*800*2200mm |
1840*800*2200mm |
|
Internal Size (W*D*H) |
820*670*730mm |
1020*670*730mm |
1320*670*730mm |
1620*670*730mm |
|
Work Surface Height |
850mm |
||||
Max Opening |
520mm |
||||
Air Velocity |
0.3~0.8m/s |
||||
Noise |
≤60dB |
||||
Exhaust Duct |
PVC, Standard length: 4 meters |
||||
Φ300mm |
|||||
Pipe Strap |
1 pc |
||||
LED Lamp |
8W*1 |
12W*1 |
16W*1 |
16W*1 |
|
UV Lamp |
Emission of 253.7 nanometers for most efficient decontamination |
||||
Blower |
Built-in centrifugal blower; Speed adjustable |
||||
Front Window |
5mm toughened glass; Motorized; Height adjustable |
||||
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
||||
Consumption |
400W |
400W |
500W |
500W |
|
Material |
Exterior |
Cold-rolled steel with anti-bacteria powder coating |
|||
Interior |
High grade melamine board with good acid and alkali resistance function |
||||
Work Table |
Chemical resistant phenolic resin |
||||
Stand Accessories |
UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet Total load of 2 waterproof sockets: 500W 4 meter PVC exhaust duct, pipe strap |
||||
Optional Accessory |
Active carbon filter |
||||
Gross Weight |
286kg |
317kg |
350kg |
400kg |
|
Package |
Main Body |
1190*990*1690mm |
1390*990*1690 mm |
1690*990*1690mm |
1990*990*1690mm |
Base Cabinet |
1290*990*980mm |
1390*990*980mm |
1690*970*970mm |
1990*990*980mm |
