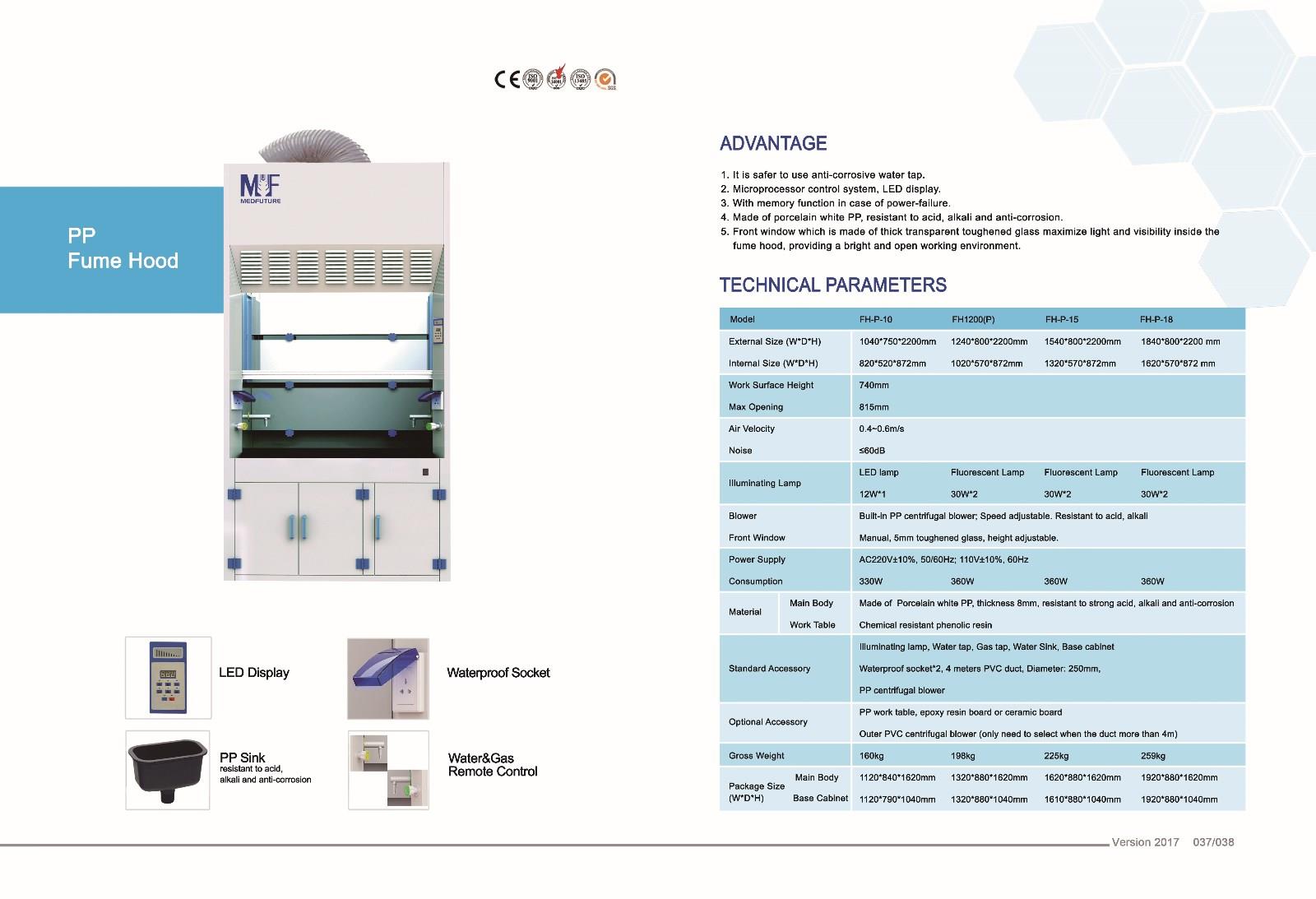

FH(P) Series fume hood_FH(P) Series fume hood

LED Display Waterproof Socket

PP sink Water&Gas Remote Control

Resistant strong acid,

alkali and anti-corrosion

Advantage

1.It is safer to use anti-corrosive water tap.

2.Microprocessor control system, LED display

3.With memory function in case of power-failure

4.Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion.

5.Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.

Model		FH-P-10	FH-P-12	FH-P-15	FH-P-18
External Size (WDH)		10407502200mm	12408002200mm	15408002200mm	18408002200mm
Internal Size (WDH)		820520872mm	1020570872mm	1320570872mm	1620570872mm
Work Surface Height		740mm
Max Opening		815mm
Air Velocity		0.4~0.6m/s
Noise		≤60dB
Illuminating Lamp		LED lamp	Fluorescent Lamp	Fluorescent Lamp	Fluorescent Lamp
		12W*1	30W*2	30W*2	30W*2
Blower		Built-in axial flow blower; Speed adjustable. Resistant to acid, alkali
Front Window		Manual, 5mm toughened glass, height adjustable
Power Supply		AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption		330W	360W	360W	360W
Material	Main Body	Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion
	Work Table	Chemical resistant phenolic resin
Standard Accessory		Illuminating Lamp, Water tap, Gas tap, Water Sink, Base cabinet
		Waterproof socket*2
		4 meters PVC duct, Diameter: 250mm
Optional Accessory		PP work table, epoxy resin board or ceramic board
		Outer centrifugal blower, resistant to strong acid, alkali
Gross Weight		160kg	198kg	225kg	259kg
Package Size (WDH)	Main Body	11208401620mm	13208801620mm	16208801620mm	19208801620mm
	Base Cabinet	11207901040mm	16208801040mm	16108801040mm	19208801040mm
