FH(E) Series fume hood_FH(E) Series fume hood

ADVANTAGE:

1. Adjustable air speed: 9 level.

2. Manual front glass window, height adjustable.

3. With air velocity memory function in case of power failure.

4. PP Built-in axial flow blower, melamine board inward, resistant to acid, alkali, and anti-corrosion.

Model			FH-E-10	FH-E-12	FH-E-15	FH-E-18
External Size(WDH)			10008002365mm	12008002365mm	15008002465mm	18008002465mm
Internal Size(WDH)			790635820mm	990635820mm	1290635820mm	1590635820mm
Work Surface Height			900mm
Max Opening			750mm
Air Velocity			0.3~0.8m/s
Noise			≤60dB
Exhaust Duct			PVC, Standard length: 4 meters
			φ300mm
Pipe Strap			2 pcs			4 pcs
LED Fluorescent Lamp			8W *1	12W *1	16W *1	16W *1
UV Lamp			No
Blower			PP Built-in axial flow blower(FH-E-10 and FH-E-12); PP Built-in centrifugal flow blower(FH-E-15 and FH-E-18); Speed adjustable with 9 levels
Front Window			Manual, 5mm toughened glass, height adjustable
Power Supply			220V±10%, 60/50Hz;110V±10%, 60Hz
Consumption			400 W	400 W	500 W	500 W
Material	Exterior		1.0mm cold-rolled steel with bacteria power coating
	Interior		High grade melamine board with good acid and alkali resistance function
	Work table		Chemical resistant phenolic resin
Standard Accessory			Water tap, Water sink, Waterproof socket*2, LED lamp, PP Built-in axial flow blower, Total load of 2 waterproof sockets: 500W, 4 meters PVC exhaust duct, pipe strap
Optional Accessory			Gas tap
Gross Weight			286kg	317kg	350kg	400kg
Package		Main Body	11409401720mm	13409401720mm	16409401720mm	19409401720mm
		Base Cabinet	11409401050mm	13409401050mm	16409401050mm	19409401080mm

Related Information

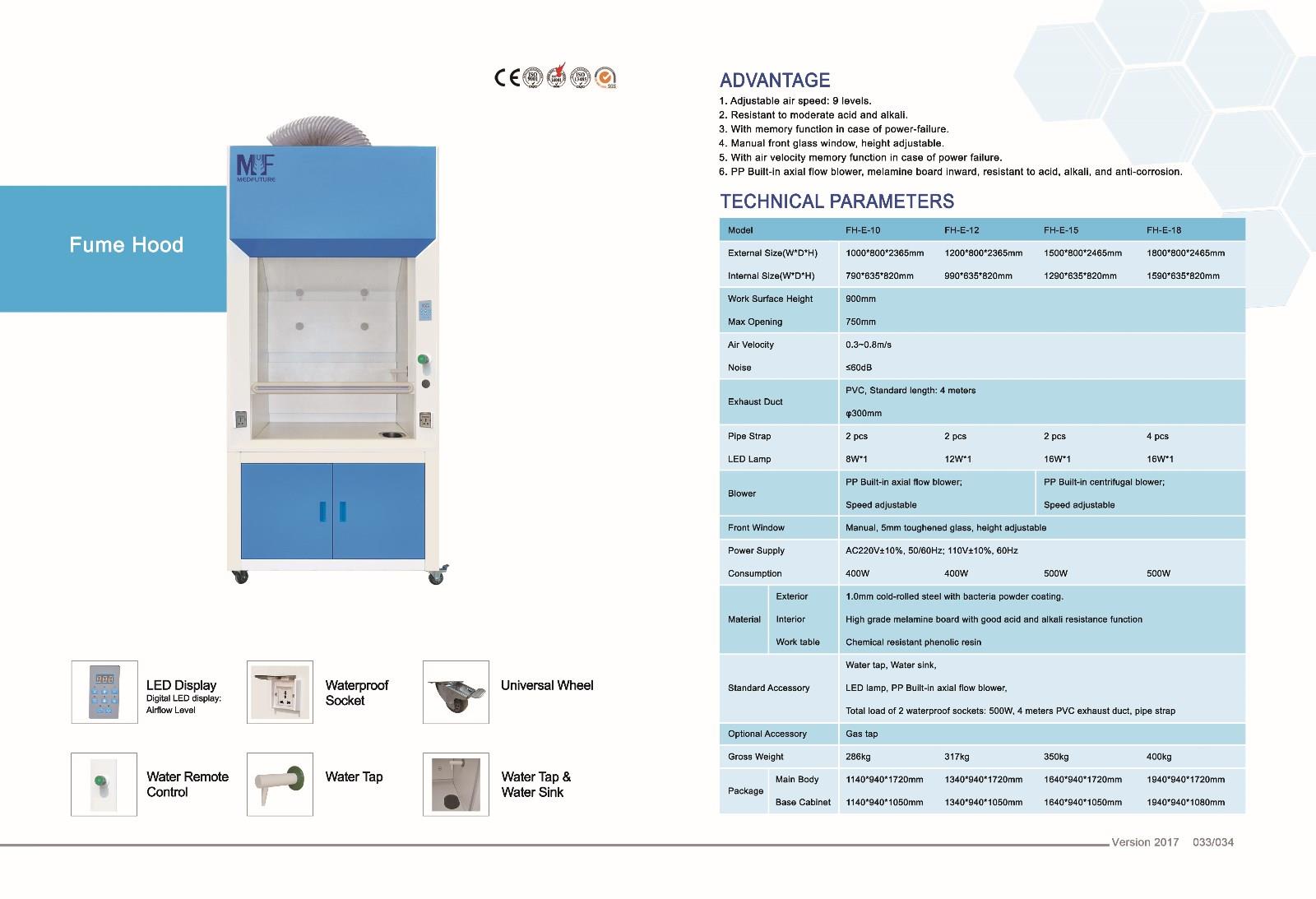

Fume Hood--FH(E).jpg
