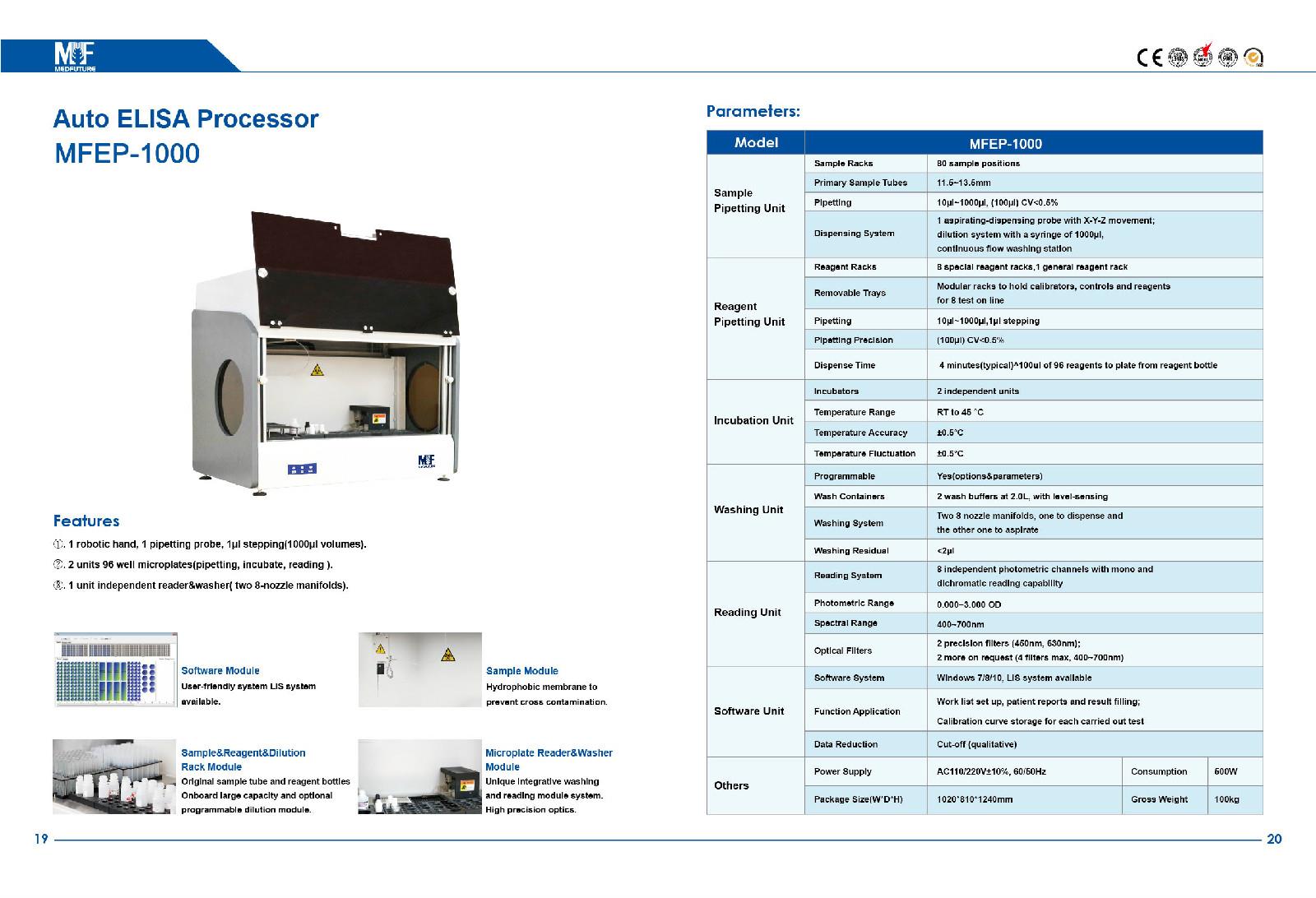

ELISA Processor(MFEP-1000)

Model

MFEP-1000

Sample Pipetting

Unit

Sample Rack

80 sample positions(tubes 12mm)

Primary Sample Tubes

12*75mm

Pipetting

10ul~1000ul, (100ul) CV<0.5%

Dispensing System

1 aspirating-dispensing probe with X-Y-Z movement;

Dilution system with a syringe of 1000ul, continuous flow washing station.

Reagent Pipetting

 Unit

Reagent Racks

8 special reagent racks,1 general reagent racks

Removable Trays

Modular racks to hold calibrators, controls and reagents for 8 test on line

Pipetting

10ul~1000ul,1ul stepping

Pipetting precision

(100ul) CV<0.5%

Time to Dispense

4 minutes adding 96 reagents

Incubation Unit

Incubators

2 independent units

Temperature Range

RT to 45 °C

Temperature Accuracy

±0.5°C

Temperature Fluctuation

±0.5°C

Washing Unit

Programmable

Yes(options & parameters)

Wash Containers

2 wash buffers at 2.0L, with level-sensing

Washing System

Two 8 nozzle manifolds, one to dispense and the other one to aspirate

Washing Residual

<2μl

Reading Unit

Reading System

8 independent photometric channels with mono and dichromatic reading capability

Photometric Range

0.000 ~3.000 OD

Spectral Range

400-700nm

Optical Filters

2 precision filters (450,630nm); 2 more on request (4 filters max, 400-700nm)

Software Unit

Software System

Windows 7/8/10 or above, LIS system available

Function Application

Work list set up, patient reports and result filing;

Calibration curve storage for each carried out test

Data Reduction

cut-off (qualitative)

Others

Package Size(W*D*H)

1020*810*1240mm

Gross Weight

100kg

Power Supply

AC110/220V+10%,50/60Hz
