Software Module
User-friendly systemLIS system available.
Sample Module
Hydrophobic membrane to prevent cross contamination.
Sample & Reagent & Dilution Rack Module
Original sample tube and reagent bottles ,onboard large capacity and optional programmable dilution module.
Microplate Reader & Washer Module
Unique integrative washing and reading module system. High precision optics.

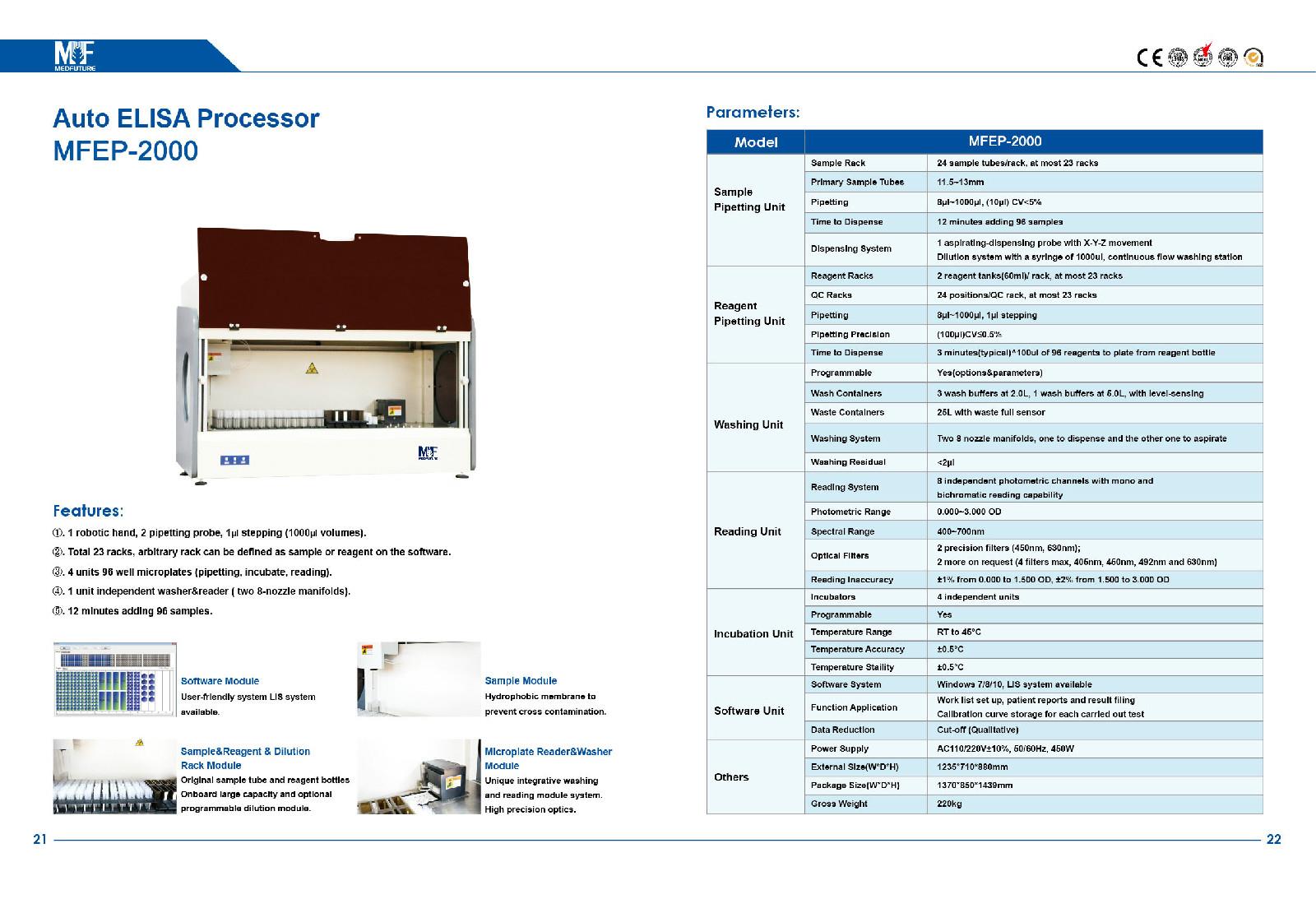

Model |
MFEP-2000 | |
Sample pipetting unit |
Sample rack | 24 sample tubes/rack, at most 23 racks |
Primary sample tubes | 11.5-13mm | |
Pipetting | 8ul~1000ul, (10ul) CV<5% | |
Time to dispense | 12 minutes adding 96 samples | |
Dispensing system |
1 aspirating-dispensing probe with X-Y-Z movement; Dilution systemwith a syringe of 1000ul, continuous flow washing station. |
|
Reagent pipetting unit |
Reagent racks | 2 reagent tanks(60ml)/ rack, at most 23 racks |
QC racks | 24 positions/QC rack, at most 23 racks | |
Pipetting | 8ul~1000ul,1ul stepping | |
pipetting precision | (100ul )CV≤0.5% | |
Time to dispense | 3 minutes(typical)^100ul of 96 reagents to plate from reagent bottle | |
Washing unit |
Programmable | Yes(options & parameters) |
Wash containers | 3 wash buffers at 2.0L, 1 wash buffers at 5.0L, with level-sensing | |
Waste containers | 25L with waste full sensor | |
Washing system | two 8 nozzle manifolds, one to dispense and the other one to aspirate | |
Washing residual | <2μl | |
Reading unit |
Reading system | 8 independent photometric channels with mono and bichromatic reading capability |
Photometric range | 0.000 ~3.000 OD | |
Spectral range | 400-700nm | |
Optical filters |
2 precision filters (450and 630nm); 2 more on request
(4 filters max, 405 nm, 450 nm, 492 nm and 630 nm) |
|
Reading inaccuracy | inaccuracy±1% from 0.000 to 1.500 OD, ±2% from 1.500 to 3.000 OD | |
Incubation unit |
Incubators | 4 independent units |
Programmable | Yes | |
Temperature range | RT to 45 °C | |
Temperature accuracy | ±0.5℃ | |
Temperature staility | ±0.5℃ | |
Software unit |
Software system | Windows 7/8/10 7 or above, LIS system available |
Function application |
work list set up, patient reports and result filing; Calibration curve storage for each carried out test |
|
Data reduction | cut-off (qualitative) | |
Others |
Power Supply | AC 110/220V±10%,50/60Hz,450W |
External Size(W*D*H) | 1235*710*880mm | |
PackageSize(W*D*H) | 1370*860*1439mm | |
Gross Weight | 220kg |
