1. With narrow band infrared light source, no damage to human body, no radiation, no heat, no hurt to eyes;
2. With 3 million pixels zoom lens, it can display the magnified image clearly, provides basis for the accurate puncture;
3. With two road top and bottom light source: bottom light source adopts the German original high-power LED solid-state light source, strong penetrability; top light source is multipoint LED, no shadow, no reflected light interference, suitable for observing the superficial blood vessels;
4. Both of the light sources are stepless adjustable; fully meets different clinical needs;
5. The industrial grade camera and display provide best imaging;

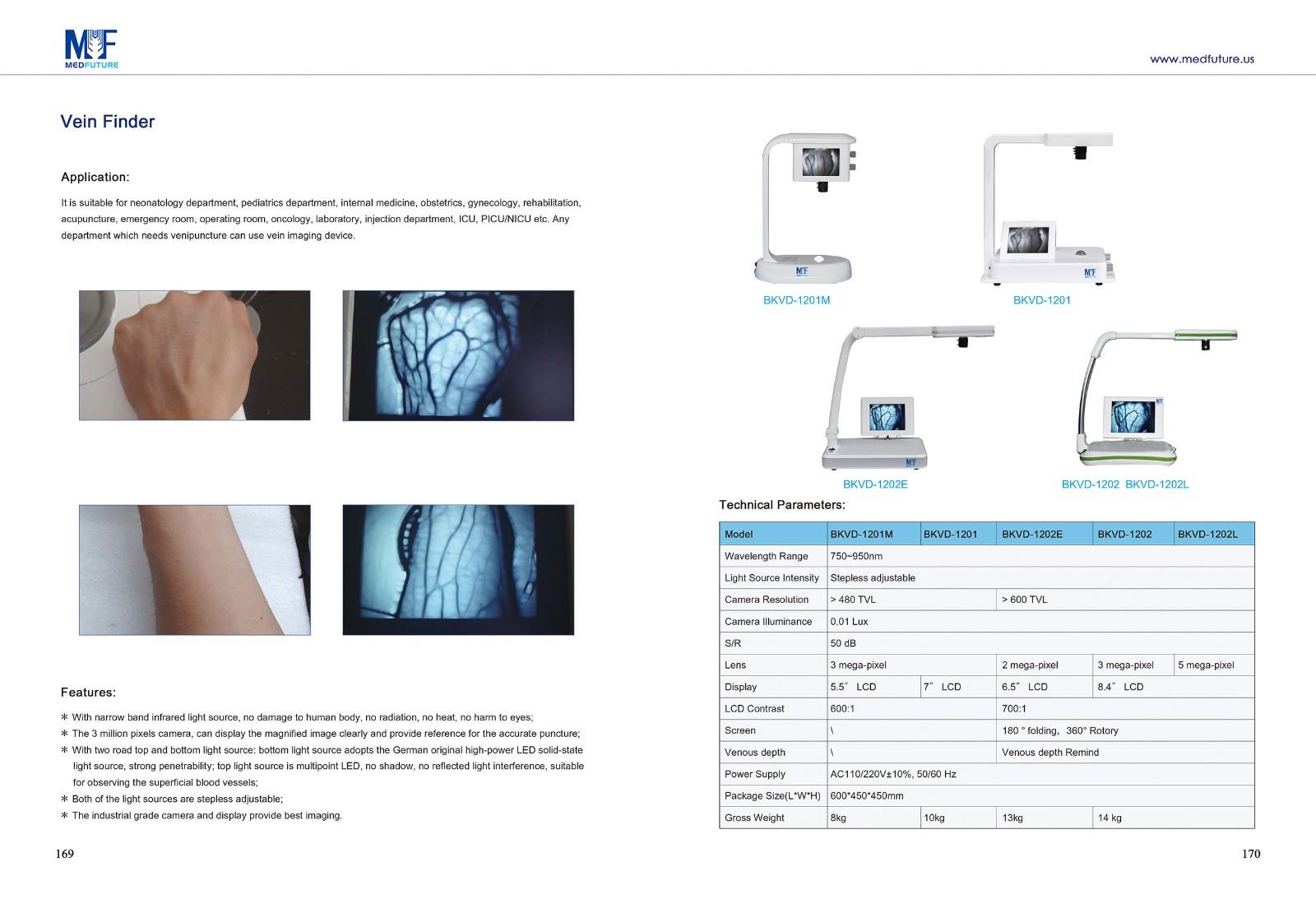

Model |
BKVD-1201M |
BKVD-1201 |
BKVD-1202E |
BKVD-1202 |
BKVD-1202L |
Wavelength Range |
750~950nm |
||||
Light Source Intensity |
Stepless adjustable |
||||
Camera Resolution |
> 480 TVL |
> 600 TVL |
|||
Camera Illuminance |
0.01 Lux |
||||
S/R |
50 dB |
||||
Lens |
3 mega-pixel |
2mega-pixel |
3 mega-pixel |
5 mega-pixel |
|
Display |
5.5″ LCD |
7″ LCD |
6.5″ LCD |
8.4″ LCD |
|
LCD Contrast |
600:1 |
700:1 |
|||
Screen |
|
180 ° folding,360° Rotory |
|||
Venous depth |
|
Venous depth Remind |
|||
Power Supply |
AC110/220V±10%, 50/60 Hz, |
||||
Packing Size(L*W*H) |
600*450*450mm |
||||
Gross Weight |
8kg |
10kg |
13kg |
14kg |
