1. It can be adapted to the 96- and 48-well Microplates.
2. Regulates rinse position of cleaning head according to user requirements.
3. Chooses to set washing parameters for different effects.
4. External programming/downloading available through RS-232 ports.
5. 8-channel or 12 channels optional
|

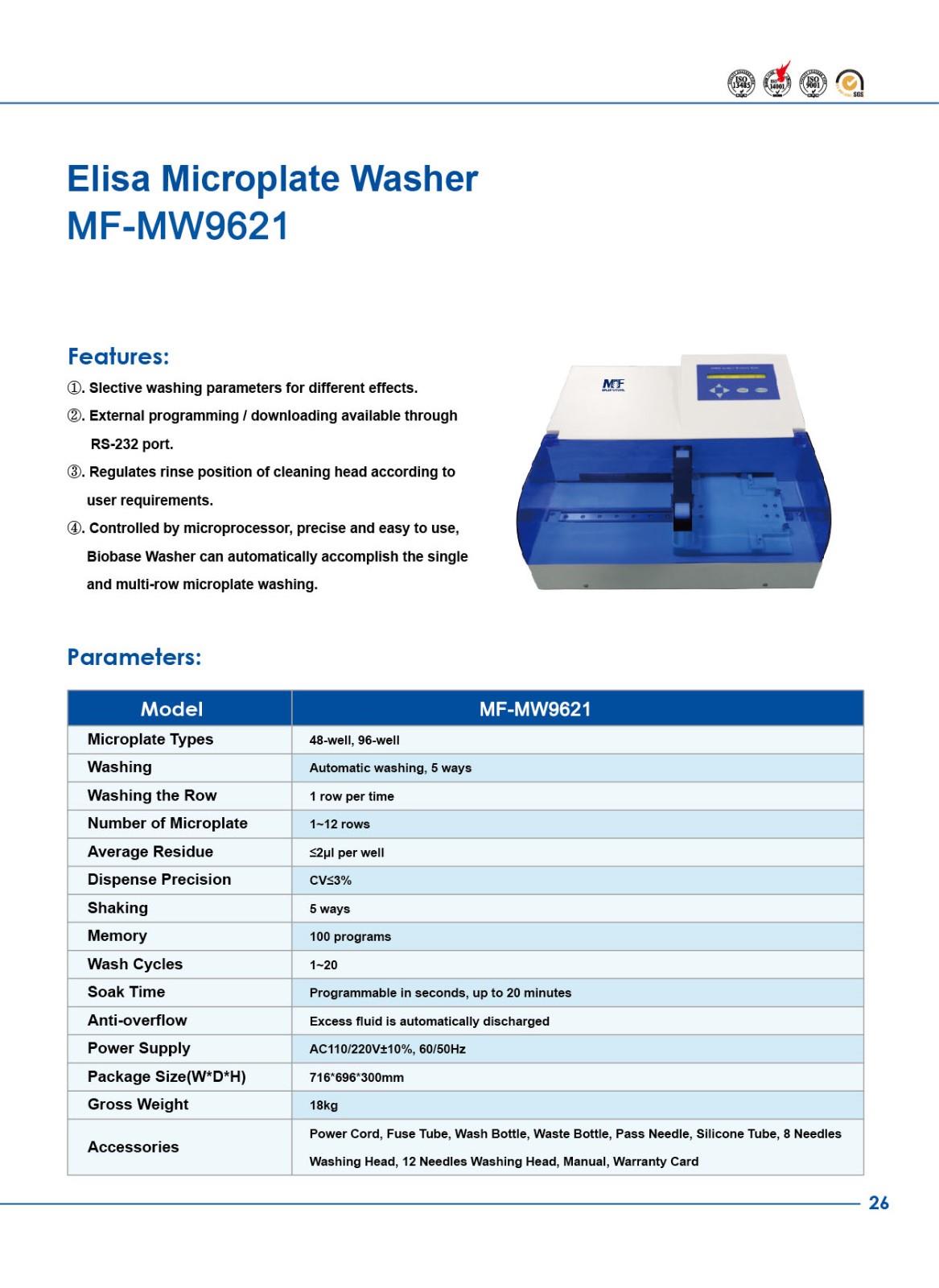

Model
|
MFMW-9621
|
|
Microplate Types
|
48-well, 96-well
|
|
Washing
|
Automatic washing 5 ways
|
Washing the Row
|
1 row per time
|
|
Number of Microplate
|
1~12 rows
|
|
Average Residue
|
≤2ul per well
|
|
Dispense Precision
|
≤3% CV
|
|
Shaking
|
5 ways
|
|
Memory
|
100 programs
|
|
Wash Cycles
|
1-20
|
|
Soak Time
|
Programmable in seconds, up to 20 minutes.
|
|
Anti-overflow
|
Excess fluid is automatically discharged.
|
Power Supply
|
AC110/220V±l0%，60/50Hz
|
Package Size(W*D*)
|
716*696*300mm
|
Gross Weight
|
18kg
|
Working Environment:
1. Environment:
a) Operating Temperature: 15° C to 30° C;
b) Relative humidity: ≤80%
c) Range of atmospheric pressure: 86.0kPa～106.0kPa
d) Surrounding environment: Non-corrosive gases, no mechanical vibration and no strong magnetic field interference.
2. Electrical: 220+22Volts AC 50+1Hz
3.Power: ≤80W1 row per time
