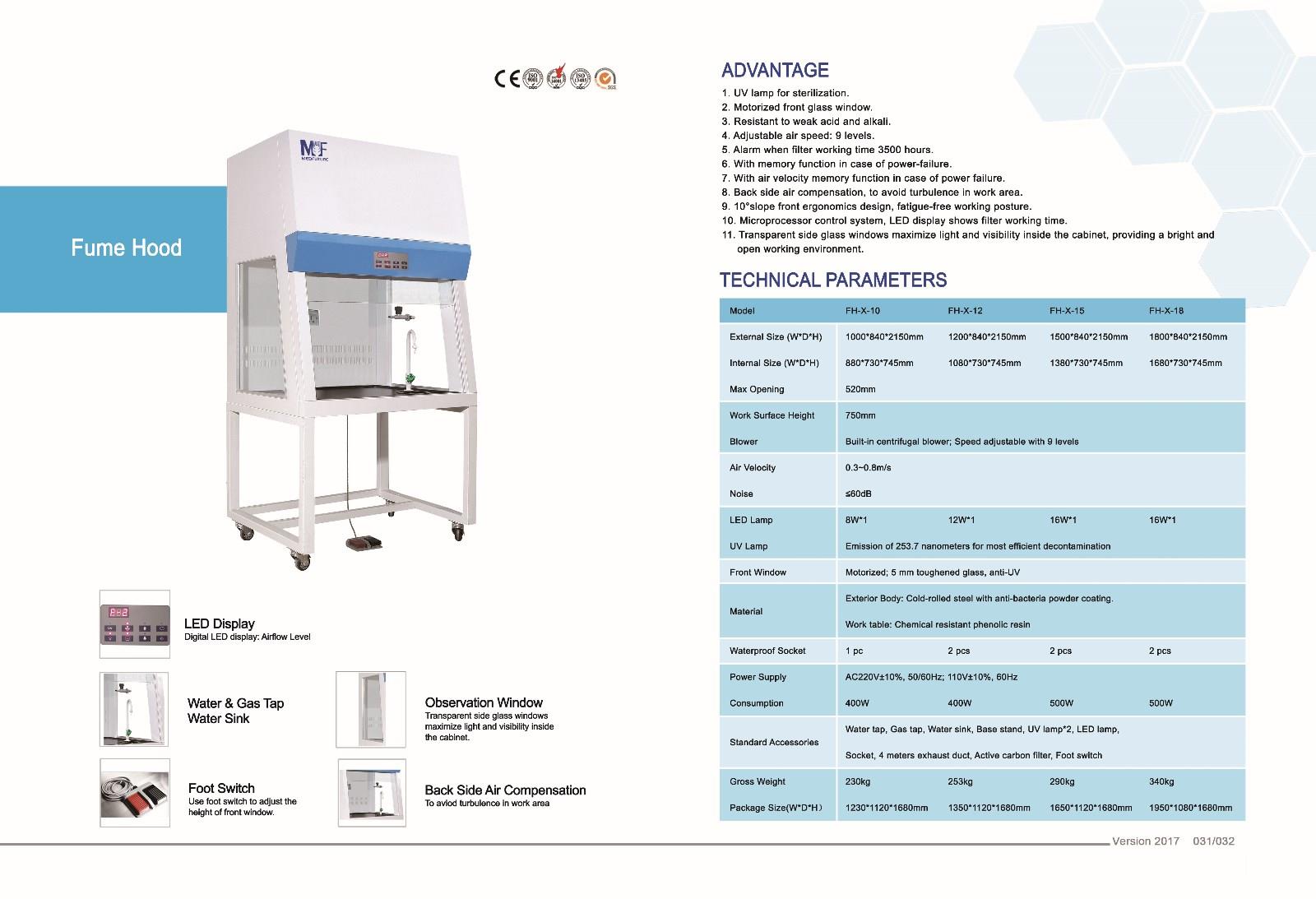

FH(X) Series fume hood_FH(X) Series fume hood

LED Display

Water & Gas Tap Water Sink

Foot Switch

Observation Window

Back Side Air Compensation

Advantage:

1. Double-layer structure: 1.2 mm sheet metal surface, melamine board inward.

2. Microprocessor control system, LED display.

3. Adjustable air speed: 6 levels.

4. Motorized front glass window.

5. UV Lamp for sterilization.

6. Built-in centrifugal blower.

Model	FH-X-10	FH-X-12		FH-X-15			FH-X-18
External Size (WDH)	10008402150mm	12008402150mm		15008402150mm			18008402150mm
Internal Size (WDH)	880730745mm	1080730745mm		1380730745mm			1680730745mm
Max Opening	520mm
Work Surface Height	750mm
Blower	Built-in centrifugal blowers; Speed adjustable with 9 levels
Air Velocity	0.3~0.8m/s
Noise	≤60dB
Fluorescent Lamp	8W*1	12W*1			16W*1		16W*1
UV Lamp	Emission of 253.7 nanometers for most efficient decontamination
Front Window	Motorized; 5mm toughened glass, anti-ultraviolet radiation
Material	Exterior Body: Cold-rolled steel with anti-bacteria powder coating
	Work table: Chemical resistant phenolic resin
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption	400W	400W			500W		500W
Stand Accessories	Water tap; Gas tap; Water sink; Base stand, UV lamp*2, Fluorescent lamp
	FH-X-10 with one waterproof sockets 500W, the other model with two waterproof sockets: 500W
	4 meters exhaust duct
	Active carbon filter
	Foot switch
Gross Weight	230kg	253kg	290kg			340kg
Package Size(WDH)	123011201680mm	135011201680mm	165011201680mm			195010801680mm
