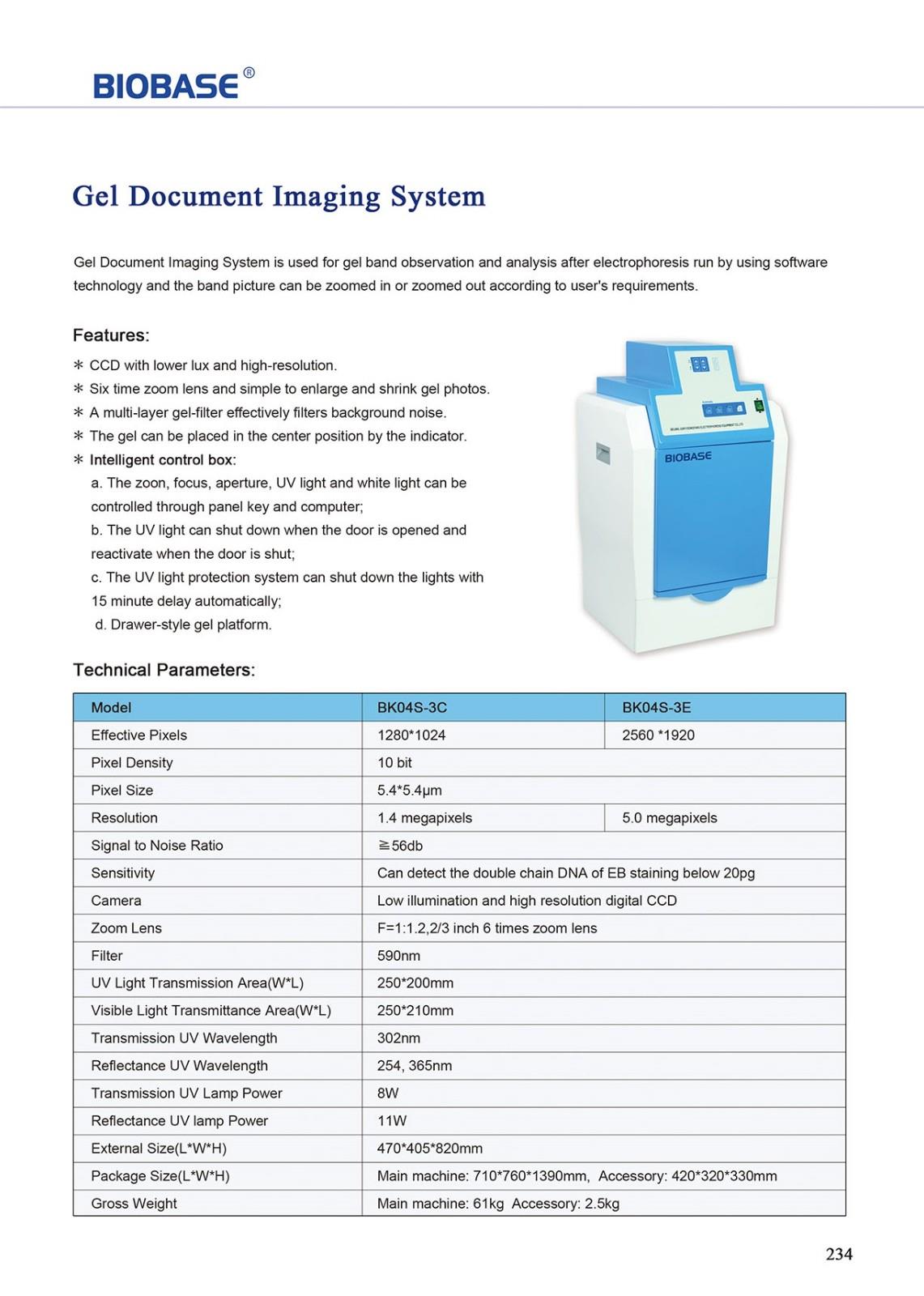

Features:
1.CCD with lower lux and high-resolution.
2.Six time zoom lens and simple to enlarge and shrink gel photos.
3.The gel can be placed in the center position by the indicator.
4.Intelligent control box:
*The zoon, focus, aperture, UV light and white light can be controlled through panel key and computer.
*The UV light can shut down when the door is opened and reactivate when the door is shut
*The UV light protection system can shut down the lights with 15 minute delay automatically.
*Drawer-style gel platform.
5. A multi-layer gel-filter effectively filters background noise
Model |
MF04S-3C |
MF04S-3E |
Effective pixels |
1280*1024 |
2560 *1920 |
Pixel density |
10 bit |
|
Pixel Size |
5.4*5.4 μm |
|
Resolution |
1.4 megapixels |
5.0 megapixels |
Signal to noise Ratio |
≧56db |
|
Sensitivity |
Can detect the double chain DNA of EB staining below 20pg |
|
Camera |
Low illumination and high resolution digital CCD |
|
Zoom lens |
F=1:1.2,2/3 inch 6 times zoom lens |
|
Filter |
590nm |
|
UV light transmission area(W*L) |
250*200mm |
|
Visible light transmittance area(W*L) |
250*210mm |
|
Transmission UV wavelength |
302nm |
|
254,365mm |
||
Transmission UV lamp power |
8W |
|
Reflectance UV lamp power |
11W |
|
External Size(L*W*H) |
470*405*820mm |
|
Package size(L*W*H) |
770*700*1430mm |
|
G.W(kg) |
71 |
