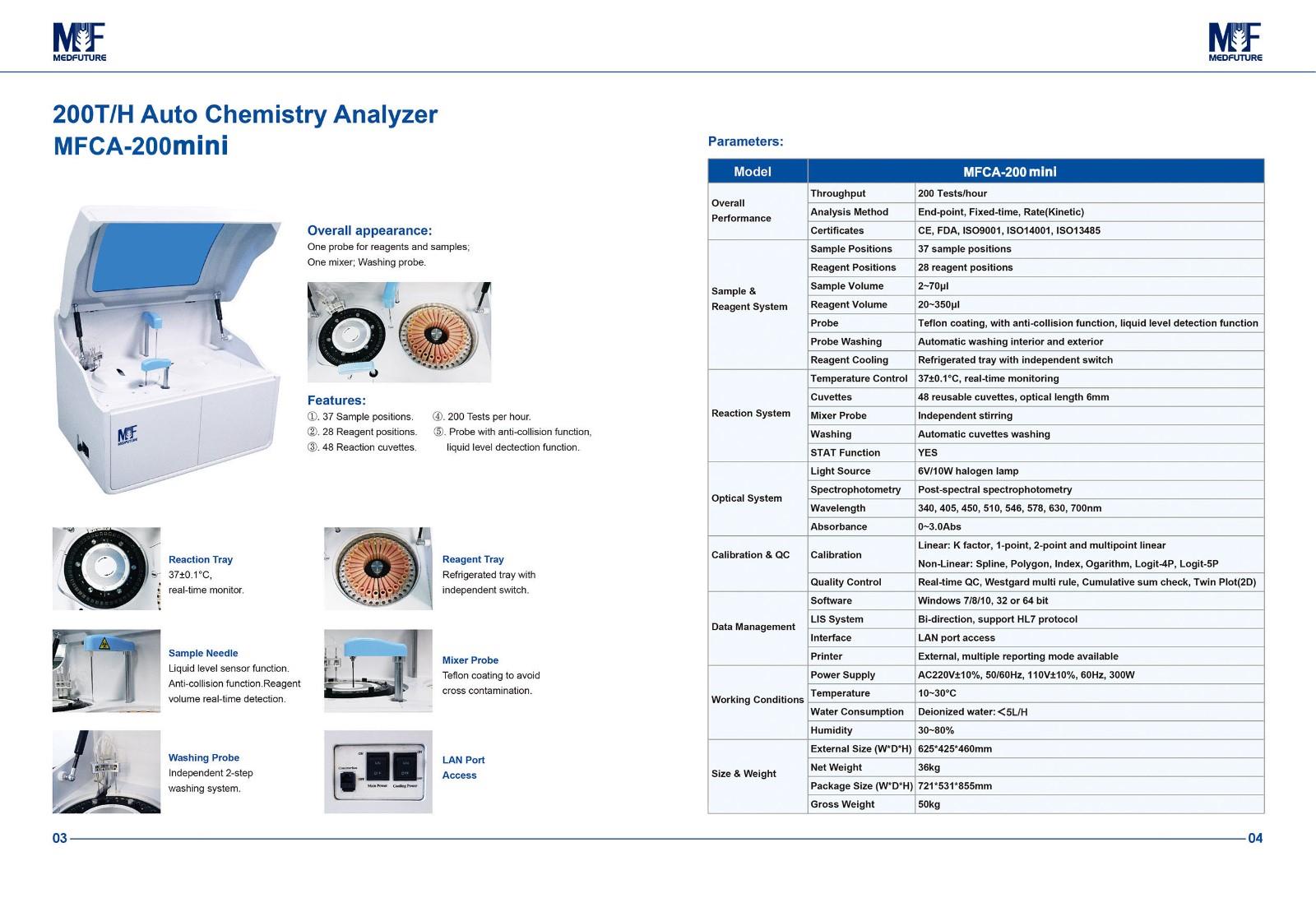

MFCA-200mini Auto Chemistry Analyzer

Model

MFCA-200mini

Overall
Performance

Throughput

200 Tests/hour

Analysis Method

End-point, Fixed-time, Rate(Kinetic)

Certificates

CE, FDA, ISO9001, ISO14001, ISO13485

Sample & Reagent System

Sample Positions

37 sample positions

Reagent Position

28 reagent positions

Sample Volume

2~70ul

Reagent Volume

20~350ul

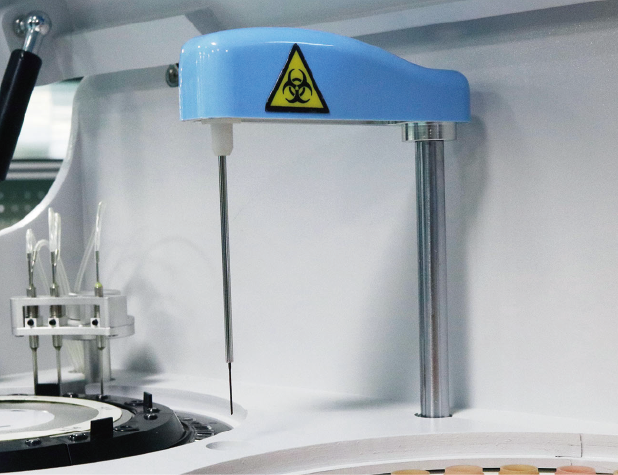

Probe

Teflon coating,withanti-collision function,Liquid level detectionfunction.

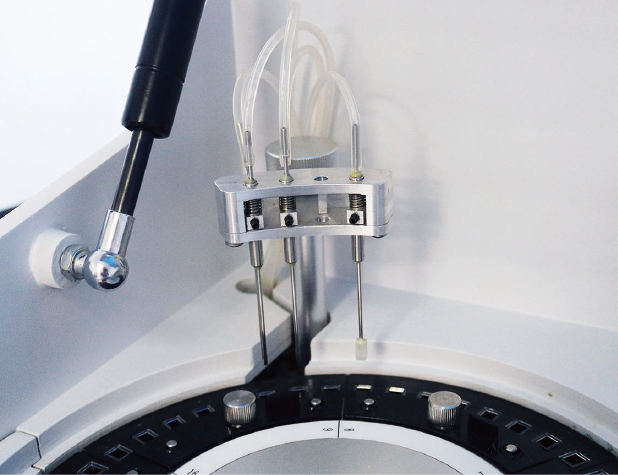

Probe Washing

Automatic washing interior and exterior

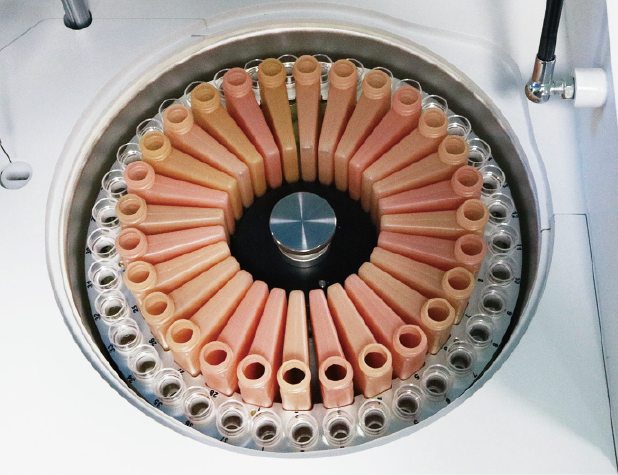

Reagent Cooling

Refrigerated tray with independent switch

Reaction System

Temperature Control

37+0.1℃, real-time monitoring

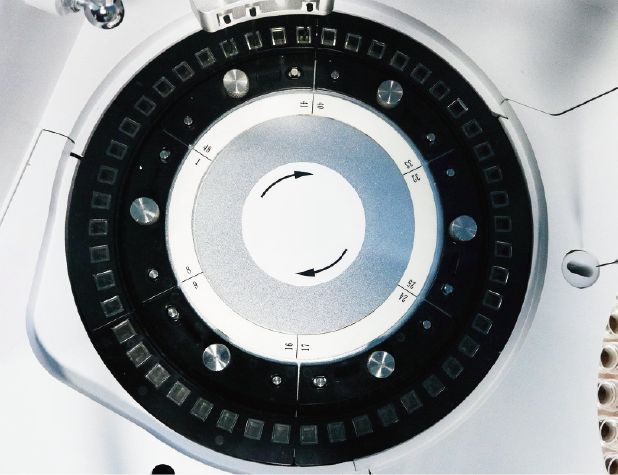

Cuvettes

48 reusable cuvettes,optical length 6mm

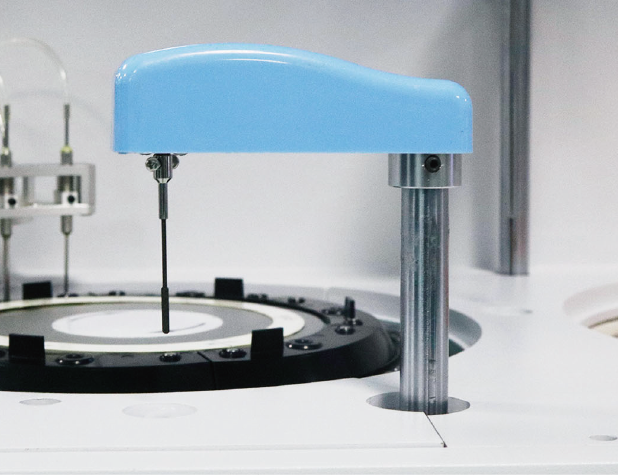

Mixer Probe

Independent stirring

Washing

Automatic cuvettes washing

STAT function

YES

Optical System

Light Source

6V/10W halogen lamp

Spectrophotometry

Post-spectral spectrophotometry

Wavelength

340,405,450,510,546,578,630,700nm

Absorbance

0~3.0Abs

Calibration & QC

Calibration

Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P

Quality Control

Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)

Data Management

Software

Windows 7/8/10 , 32or 64bit

LIS System

Bi-direction,support HL7 protocol

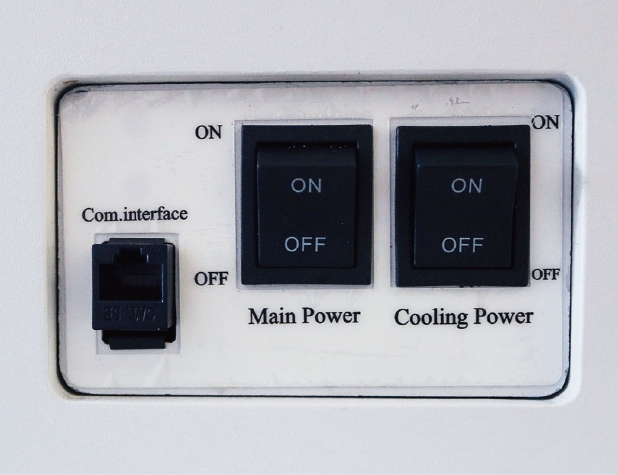

Interface

LAN port access

Printer

External,multiple reporting mode available

Working Conditions

Power Supply

AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W

Temperature

10～30℃

Water Consumption

Deionized water: <5L/H

Humidity

30-80%

Size & Weight

External Size (W*D*H)

625*425*460mm

Net Weight

36kg

Package Size (W*D*H)

721*531*855mm

Gross Weight

50kg
