Details:
Advantages:
1. Motorized front
window.
2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made up of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower,
fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time,
reduce glare and maximize reach into the work area.
Model |
B-IIA2-4F |
B-IIA2-4F-GL B-IIA2-4F-NA |
B-IIA2-6F-GL B-IIA2-6F-NA |
|
External Size (W*D*H)mm |
1383*775*2295 |
1383*775*2295 |
1873*775*2295 |
|
Internal Size (W*D*H)mm |
1210*600*660 |
1210*600*660 |
1700*600*660 |
|
Work Surface Height |
750mm |
|||
Max Opening |
550mm (22’’) |
550mm (22’’) |
550mm (22’’) |
|
Tested Opening |
Safety height 200mm (8'') |
Safety height 254mm (10’’) |
Safety height 254mm (10’’) |
|
Airflow Volume |
Inflow |
462m3/h(272cfm) |
587m3/h(346cfm) |
824m3/h(485cfm) |
Down flow |
65%:863m3/h(507cfm) |
60%:863m3/h(507cfm) |
60%:1212m3/h(713cfm) |
|
Exhaust |
35%:462m3/h(272cfm) |
40%:587m3/h(346cfm) |
40%:824m3/h(485cfm) |
|
Front Window |
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
|||
HEPA Filter |
Two, 99.999% efficiency at 0.3μm, filter life indicator |
|||
Filter Guard Type |
Aluminum alloy frame |
|||
Noise |
NSF 49≤67 dB/EN 12469≤65 dB |
|||
Illumination |
≥1000Lux |
|||

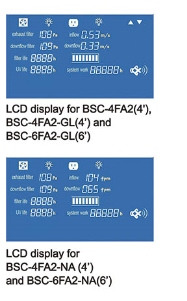

Display |
LCD Display |
|||
Waterproof Socket |
2, Total consumption:≤500W |
|||
Tap |
Water tap*1, Gas tap *1 |
|||
Ground Resistance |
≤ 0.10Ω |
|||
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
|||
Consumption |
400W |
400W |
500W |
|
Alarm |
Abnormal airflow velocity; Filter replacement; Front window at unsafe height. |
|||
DC Motor |
One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption |
|||
Material |
Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating |
|||
UV Lamp |
30W |
30W |
40W |
|
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination |
||||
Illuminating Lamp |
18W*2 |
18W*2 |
22W*2 |
|
LED lamp |
||||

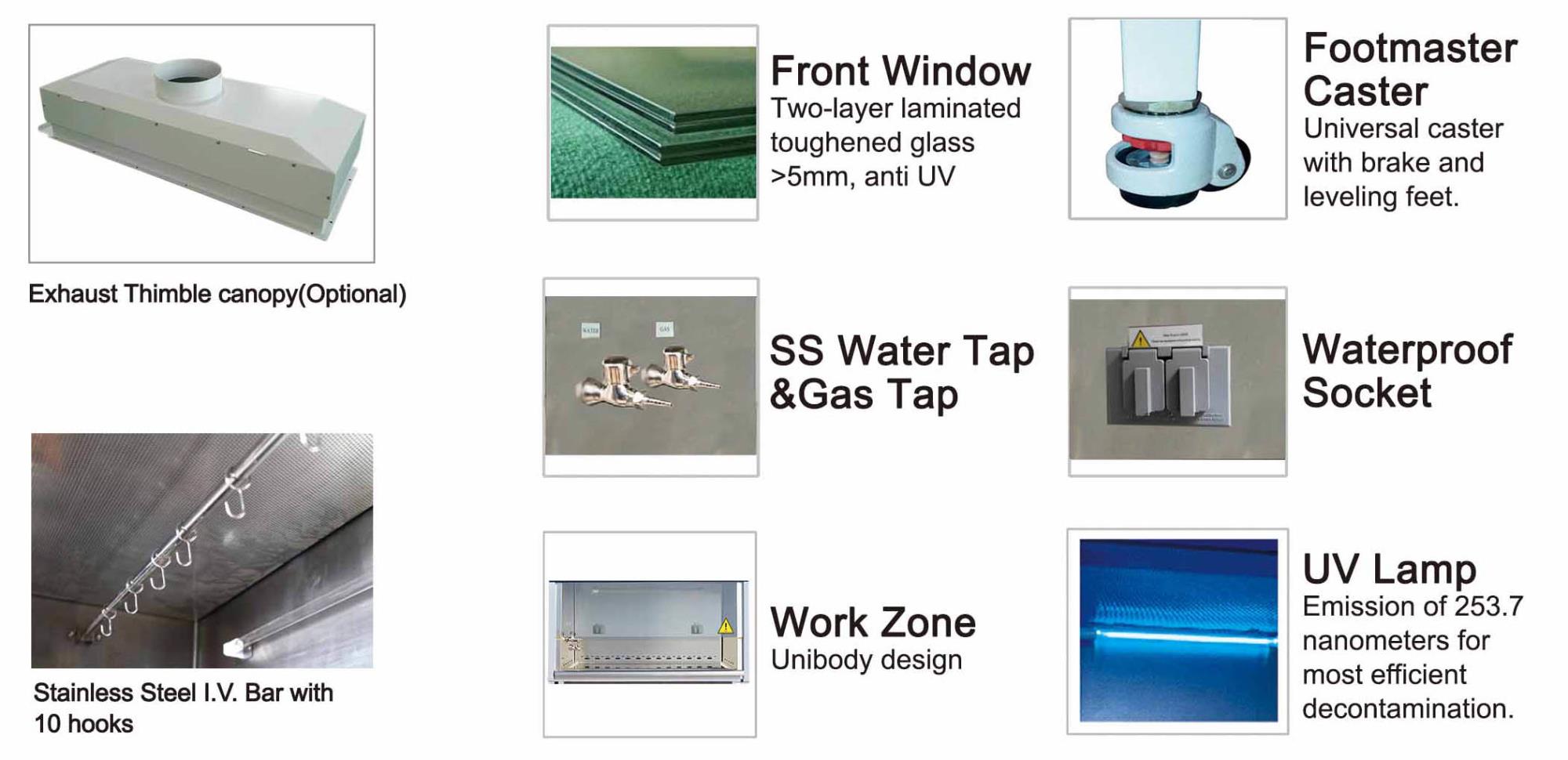

Standard Accessory |
Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks |
|||
Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Remote control |
|||
Package Size (W*D*H)mm |
1540*1080*1900 |
1540*1080*1900 |
2020*1080*1900 |
|
Gross Weight(kg) |
334 |
334 |
363 |
