MFCA-1200 Auto Chemistry Analyzer_Auto Chemistry Analyzer

①. 180 Sample positions.

②. 200 Reagent positions.

③. 160 Reaction cuvettes.

④. 800 Tests / Hour 1200 Test with ISE module.

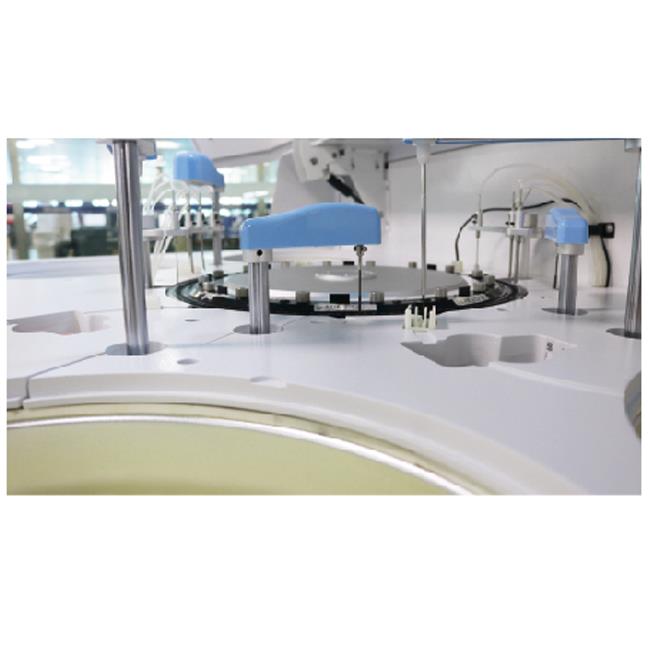

Reaction Tray

37±0.1℃, water bath

Mixer Probe

Dual mixer, auto frequency adjustment

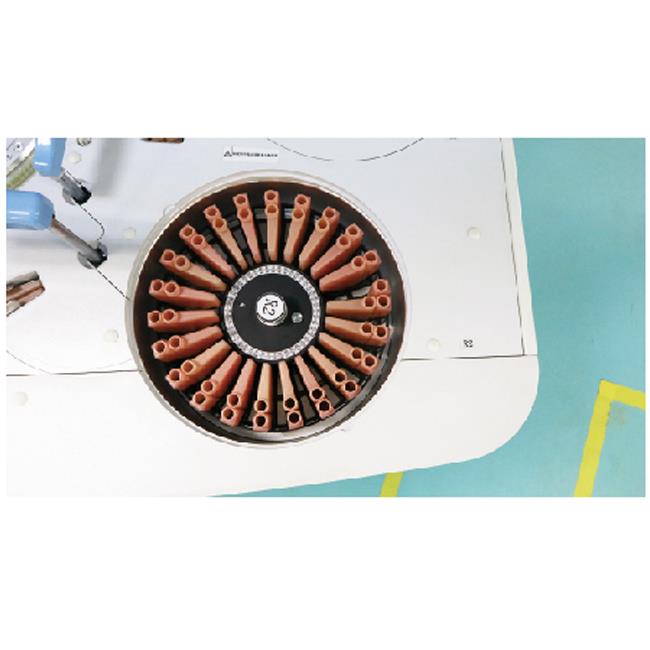

Reagent Tray

2~8℃ cooling for 24 hours

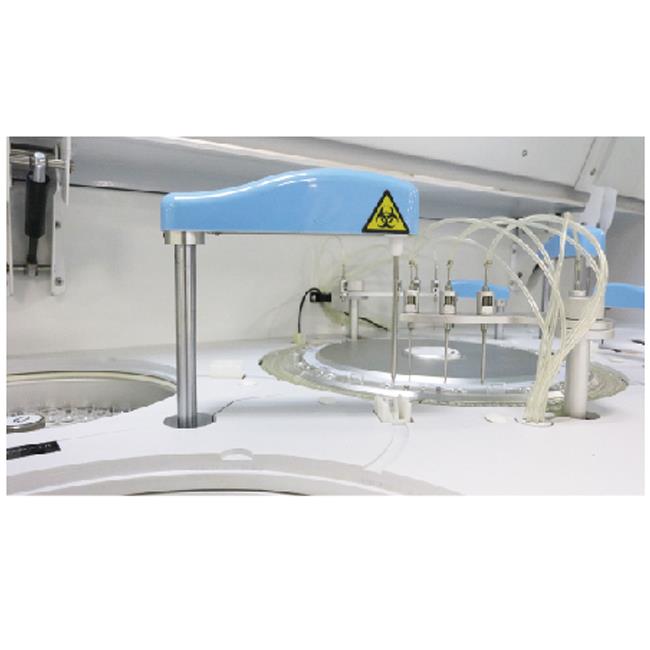

Sample Probe

Liquid level sensor function Anti collision function

Reagent volume real-time detection

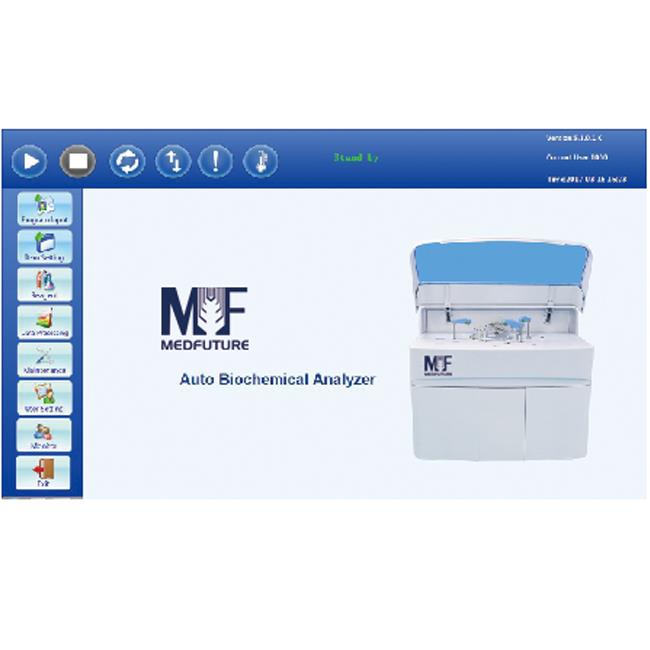

Software

User-friendly software

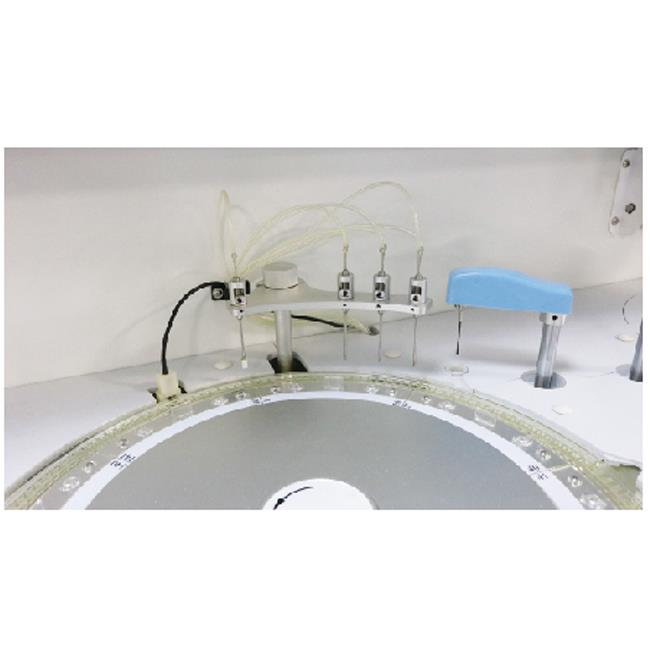

Washing Probe

Dual design, high efficiency

Model	MFCA-1200
Overall Performance	Throughput	800Tests/hour, 1200Tests/hour with ISE(Optional)
	Analysis Method	End-point, Fixed-time, Rate(Kinetic), Turbidimetry
	Certificates	CE, FDA, ISO9001, ISO14001, ISO13485
Sample & Reagent System	Sample Positions	150sample positions
	Reagent Position	180reagent positions
	Sample Volume	2~70ul
	Reagent Volume	20~350ul
	Probe	Teflon coating,withanti-collision function,Liquid level detectionfunction
	Probe Washing	Automatic washing interior and exterior
	Reagent Cooling	Refrigerated tray with independent switch
Reaction System	Temperature Control	Water bath37±0.1℃, real-time monitoring
	Cuvettes	160reusable cuvettes, optical length 6mm
	Mixer Probe	Independent stirring
	Washing	Automatic cuvettes washing
	STAT function	YES
Optical System	Light Source	12V/20W halogen lamp/fiber bragg grating optional
	Spectrophotometry	Post-spectral spectrophotometry
	Wavelength	12 wavelength from 340~800nm
	Absorbance	-0.3~3.0Abs
Calibration & QC	Calibration	Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P
Calibration & QC	Quality Control	Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Data Management	Software	Windows 7/8/10 , 32or 64bit
	LIS System	Bi-direction,support HL7 protocol
	Interface	LAN port access
	Printer	External,multiple reporting mode available
Working Conditions	Power Supply	AC220V±10% 50/60Hz, 110V±10% 60Hz, 1500W
	Temperature	10～30℃
	Water Consumption	Deionized water:20L/H
	Humidity	30-80%
Size & Weight	External Size (WDH)	13607911157mm
	Net Weight	286kg
	Package Size (WDH)	17189291434mm
	Gross Weight	390kg
